Rim Joist Spray Foam Insulation

The rim joist band is structurally awkward for insulation to begin with: a narrow, penetration-heavy cavity where the floor framing meets the foundation, interrupted by joist ends, wiring, and plumbing runs. In Cleveland's overwhelmingly basement-dominant market — full poured-concrete basements are the norm, not the exception, especially given the region's clay-heavy soil and frost-line depth — that band runs the entire perimeter of nearly every house in the city. A gap here isn't a localized weak spot; it's a consistent, circumferential source of heat loss that touches every room with an exterior wall.

The issue compounds in Cleveland's older neighborhoods. Balloon-frame construction — standard until the late 1940s and common in the pre-1940s housing that makes up more than a fifth of the city's homes — used continuous stud bays running from the basement sill plate straight up to the attic, with no fire-blocking at the floor lines to interrupt them. An unsealed rim joist in a balloon-framed house isn't just a draft at the floor; it's an open air chase feeding cold air (and pulling warm air) all the way to the attic. Sealing the rim joist band closes off the bottom of that chase, which is often the single most direct fix available for a drafty older Cleveland home.

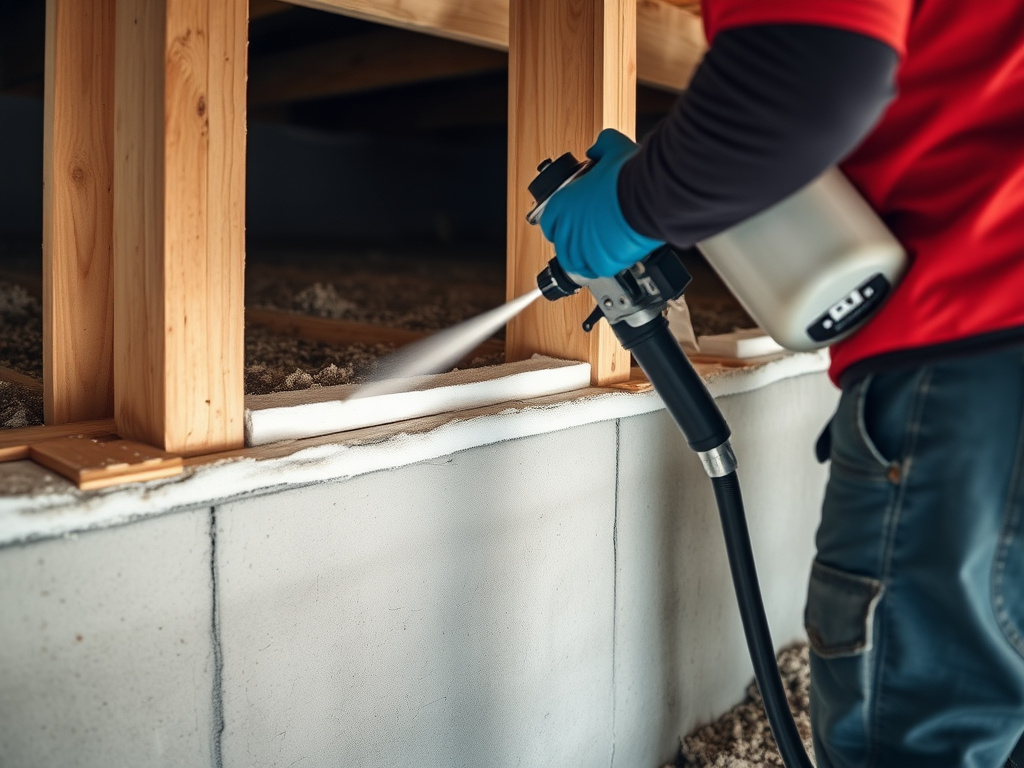

We apply closed-cell spray foam directly to the rim joist band, working it into the full depth of each joist bay so it bonds to the framing, sill plate, and foundation top plate rather than sitting loosely against them the way batt insulation does. Because the foam expands on contact, it fills irregular gaps around wiring, plumbing penetrations, and uneven framing that would otherwise leave a straight air path from the basement to the living space above. This is commonly done as part of a basement or crawl space insulation project, since access is already open, but it's also addressed as a standalone fix when the rest of the home's insulation is performing reasonably well and the rim joist is the identified weak point.

Closed-cell foam is the right material for this application specifically because of the assembly's exposure to potential moisture — sill plates near grade can see ground moisture and condensation in Zone 5A's humid-continental climate, and closed-cell foam's low permeability helps protect the wood framing better than an open-cell product or unfaced batt in the same location.

Rim joist sealing is a targeted fix for a specific, commonly-missed gap — it complements attic and wall insulation rather than replacing them. If your home has cold floors but a well-insulated attic and walls, the rim joist is often the missing piece, especially in balloon-framed construction where it's effectively an open chase to the rest of the house. If multiple assemblies are underperforming at once, we'll walk the whole envelope during a free on-site assessment and tell you plainly where the priority is, rather than selling a single fix that won't move the needle on its own.

This is also a natural add-on for anyone already planning basement or crawl space work, since access to the rim joist band is usually already open during that project. Addressing it at the same time is typically far more cost-effective than returning for a standalone visit later.
